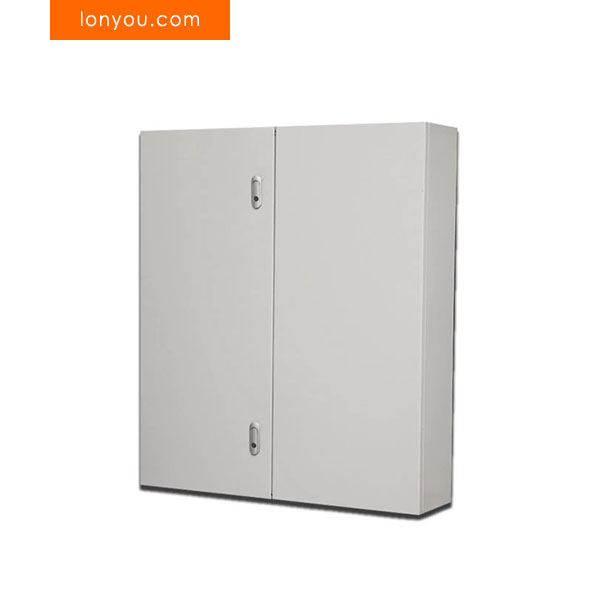

Double Door Electrical Enclosures

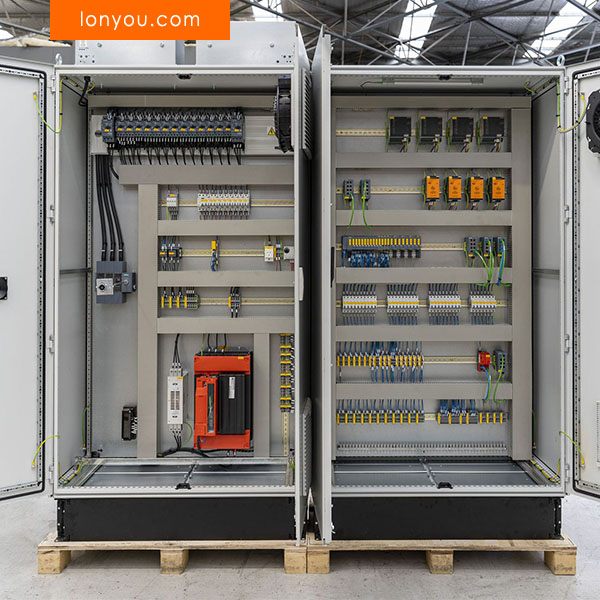

Double Door Electrical Enclosures are designed to provide spacious and secure housing for larger or more complex electrical and electronic systems. The dual door configuration offers enhanced access for installation, maintenance, and inspection, while maintaining a robust seal to protect internal components from environmental factors. Constructed from durable materials, these enclosures are ideal for industrial control panels, automation systems, power distribution equipment, and other applications requiring significant internal space and convenient access.

Features

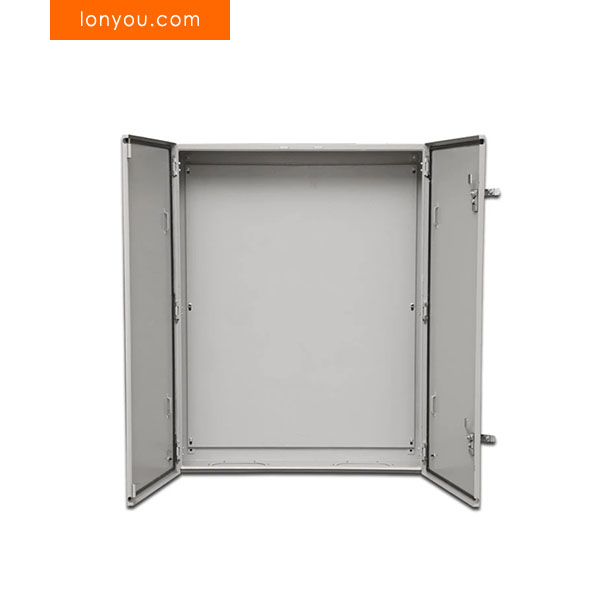

• Features a double door design providing wide and unobstructed access to internal components.
• Constructed from robust materials such as steel, stainless steel, or aluminum.
• Offers increased internal space for larger equipment or complex wiring.
• Doors typically feature multiple locking points for enhanced security and a tight seal.
• Designed with seals and gaskets to protect against dust, dirt, and moisture ingress.
• Available in various sizes and depths to accommodate different equipment dimensions.
• May include internal mounting panels or rails for easy component installation.
• Often features provisions for cable entry and management.
• Can be floor-mounted or wall-mounted depending on the size and design.
• Offers a professional and organized housing solution for extensive electrical systems.
• Some models may include ventilation options or provisions for cooling.
• Can be customized with features like viewing windows or specific cutouts.

Technical Data

• Material: Typically Steel (powder-coated), Stainless Steel (various grades like 304 or 316), or Aluminum
• Door Configuration: Two hinged doors, may include a center mullion or overlapping design
• IP Rating: Ranges based on the level of protection offered against dust and water ingress (e.g., IP55, IP65)
• NEMA Rating (if applicable): Ranges based on the level of protection against environmental hazards
• External Dimensions (HxWxD): Varies widely depending on the model (examples: 1200x1200x400mm, 1800x1500x600mm)
• Internal Dimensions (HxWxD): Varies depending on the model and door configuration
• Weight: Varies depending on the size and material
• Operating Temperature Range: Typically -30°C to +70°C (specific range depends on the material and seals used)
• Impact Resistance (if applicable): Rated by IK code (e.g., IK08, IK10)
• Gasket Material: Typically neoprene, polyurethane, or silicone
• Locking Mechanism: Multi-point locking systems, keyed locks, rod latching mechanisms
• Mounting Options: Floor-standing, wall-mounting (depending on size and design)
• Internal Mounting Provisions: Removable mounting panels (steel or galvanized), DIN rails
• Cable Entry Points: Knockouts or removable gland plates on the top, bottom, or sides
• Finish (for metal enclosures): Powder-coated (various colors), natural stainless steel or aluminum finish
• Door Opening Angle: Typically 130° or more per door

Specifications

Please contact sales for customizing any other sizes.
