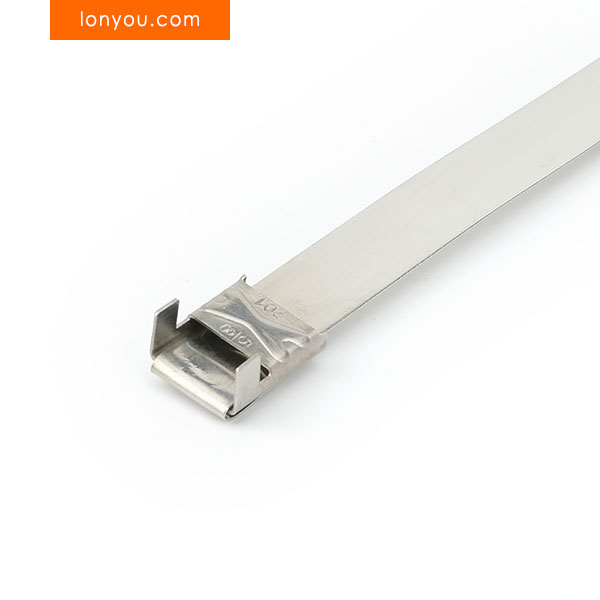

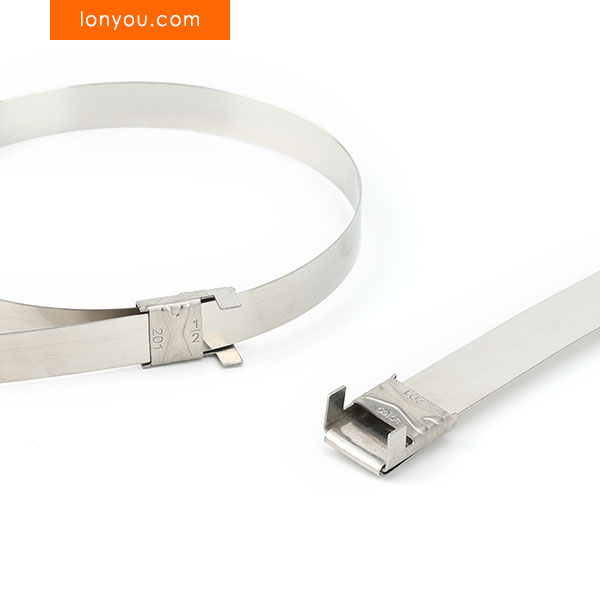

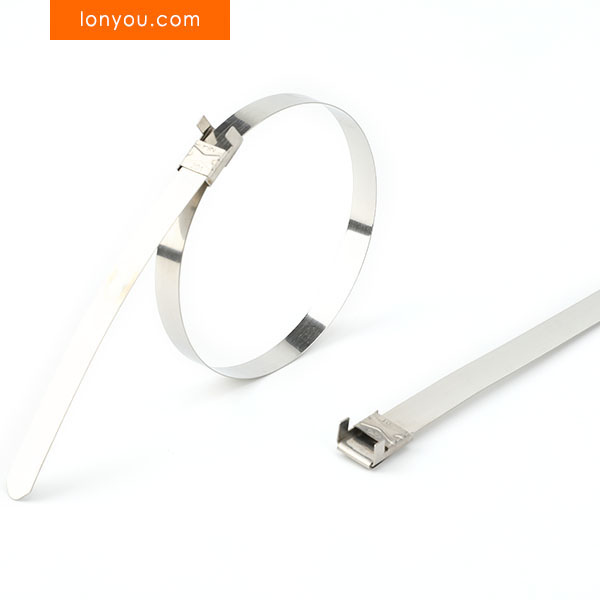

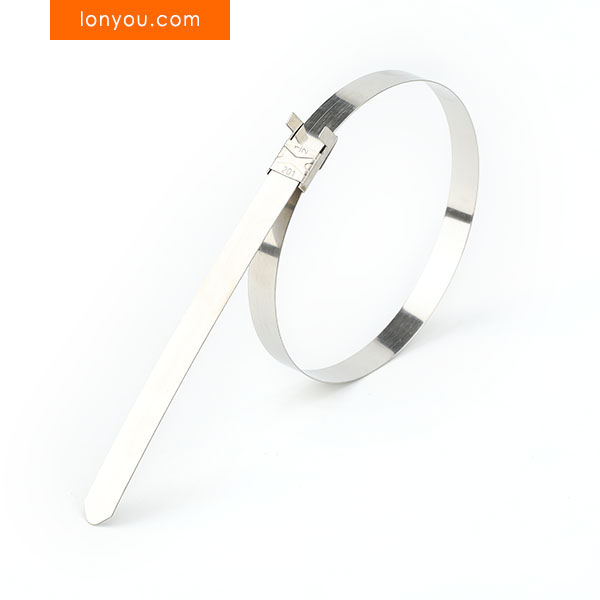

LX Clip Stainless Steel Ties

Preformed Stainless Steel Ties with LX Clips offer a ready-to-use solution for securing and bundling items, providing the strength and corrosion resistance of stainless steel with a convenient, pre-attached LX clip. These ties are designed for fast and easy installation, eliminating the need for separate banding and buckles in many applications. The LX clip ensures a secure and reliable closure, making these ties ideal for a variety of indoor and outdoor uses where durability and ease of application are essential.

Features

• Manufactured from high-quality stainless steel (typically grades 201, 304, or 316) for excellent corrosion, chemical, and temperature resistance.
• Pre-cut to specific lengths for consistent application and reduced waste.
• Feature a pre-attached LX clip designed for quick and secure fastening.
• The LX clip provides a reliable locking mechanism that withstands vibration and tension.
• Available in various widths to suit different bundling requirements: 1/4" (6.35mm), 3/8" (9.53mm), 1/2" (12.7mm), 5/8" (15.88mm), and 3/4" (19.05mm).
• Offer high tensile strength for secure bundling and fastening.
• Smooth edges on the tie to minimize potential damage to bundled items.
• Suitable for a wide range of applications, including cable and hose bundling, sign mounting, and general securing in industrial, construction, marine, and other demanding environments.
• Provide a tamper-resistant fastening solution.
• Available in various lengths to accommodate different bundle diameters.

Technical Data

• Material Grade: Typically Stainless Steel 201, 304, or 316
• Band Widths Available: 3/8" (9.53mm), 1/2" (12.7mm), 5/8" (15.88mm), 3/4" (19.05mm)
• Band Thickness: Varies depending on the width (e.g., from 0.015" to 0.030" / 0.40mm to 0.76mm)
• Pre-cut Lengths: Available in various standard lengths (e.g., 6", 12", 18", 24", 36", other custom lengths may be available)
• Clip Type: Stainless Steel Wing Seals (LX Clip)
• Minimum Loop Tensile Strength: Varies significantly based on the band width and material grade (refer to specific product specifications, can range from 100 lbs to over 500 lbs)
• Corrosion Resistance: Excellent resistance to rust, oxidation, and many chemicals (varies by stainless steel grade; 316 offers the highest resistance)
• Operating Temperature Range: Typically -40°C to +150°C (-40°F to +302°F) or higher, depending on the stainless steel grade
• Installation Method: Manual application, often aided by a tensioning tool to tighten the tie before locking the LX clip
• Edge Condition: Smooth, rounded edges
• Packaging: Typically sold in bags or boxes of specified quantities
• Common Applications: Cable bundling, hose clamping, securing signs, attaching insulation, general fastening in harsh environments.

Specifications

Note: Any lengths from 200 to 3000mm are available for custom.
